Cutting Edge Earth Anchors (Auger Anchors)

Cutting Edge Earth Anchors (Auger Anchors)

$17.00 USD
$17.00 USD
Sale Call for pricing 800-544-4550 or send us a quote request.
Size

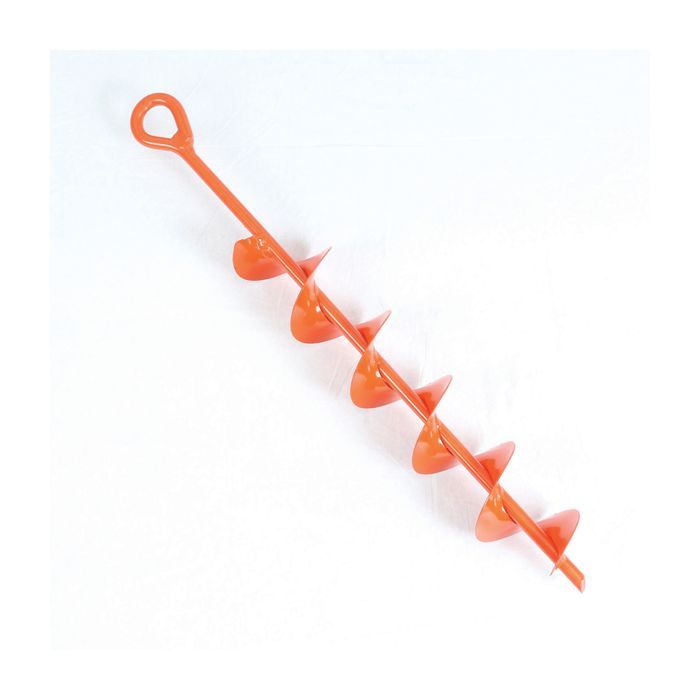

The Cutting Edge Auger Anchor is a heavy-duty tree anchor that is strong, easy to install and reliable. They are multi-functional and provides secure gripping and holding power for patio furniture, grills, tarps, boats, airplanes, bike racks, docks, piers, rafts, structures, landscaping. Their turn screw design and chiseled edge makes them easy to install.

  • 3 sizes - each with a maximum holding capacity
  • 4" helix by 10" flighting cuts through the soil 4" for every 360° rotation
  • Chiseled lead edge for easier installation
  • Welded closed eye
  • Easy to remove & reuse

View full details

Specifications

  • 6" Helical Flight x 15" Length

    • Part Number: 3A-A3S-6 inch Helical
    • Capacity: 600 lbs Dependent on soil type and density.
    • Material: Solid steel, chisel lead edge
    • Shaft Diameter: 1/2"
    • Shaft Length: 15"
    • Screw Size: 3" dia x 6" flight

  • 10" Helical Flight x 30" Length

    • Part Number: 3A-A4-10 inch Helical
    • Capacity": 2800 lbs Dependent on soil type and density.
    • Material: Solid steel, chisel lead edge
    • Shaft Diameter: 5/8"
    • Shaft Length: 30"
    • Screw Size: 4" dia x 10" flight

  • 20" Helical Flight x 30" Length

    • Part Number: 3A-A4-20 inch Helical
    • Capacity: 3500 lbs Dependent on soil type and density.
    • Material: Solid steel, chisel lead edge
    • Shaft Diameter: 5/8"
    • Shaft Length: 30"
    • Screw Size: 4" dia x 20" flight
